400W & 600W LED Sports Floodlights | 10m Poles | High Uniformity & Low Glare

ONOR LED Lighting is proud to present a newly completed professional LED tennis court lighting project, designed and delivered with a focus on high illuminance, exceptional uniformity, ultra-low glare, and minimal light spill.

This project fully demonstrates ONOR’s expertise in high-performance LED sports lighting solutions for outdoor tennis courts.

Project Overview

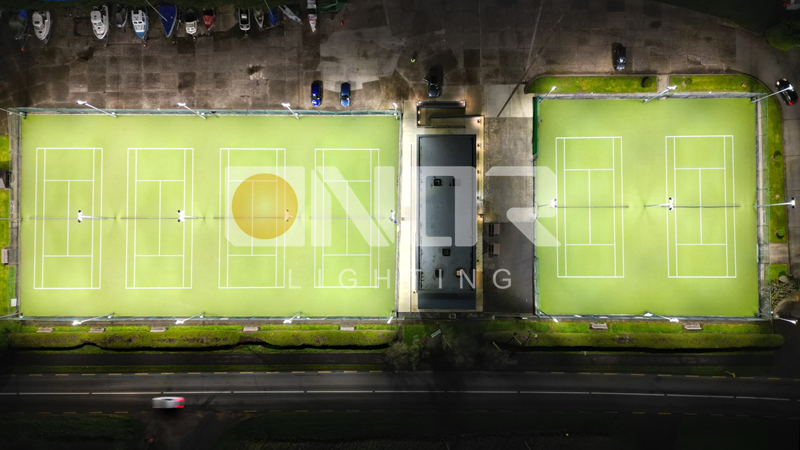

Application: Outdoor Tennis Courts
Number of Courts: 6 Tennis Courts
Lighting Standard: Club / Training / Competition Level
Lighting Design: DIALux professional simulation
Installation Height: 10 meters lighting poles
Maintenance Factor: 0.90
Upward Light Ratio (ULR): as low as 0–0.5%

This installation delivers excellent visual comfort for players while strictly controlling glare and spill light, making it ideal for tennis clubs located near roads or residential areas.

Lighting Equipment Configuration

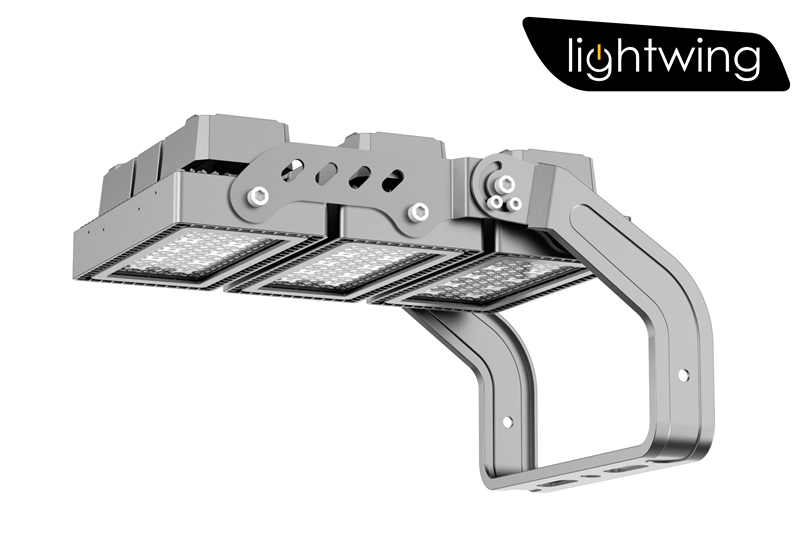

The project uses a combination of 400W and 600W LED tennis court floodlights, optimized for both horizontal and vertical illumination.

LED Floodlight Quantity & Power

Total installed luminaires (all courts):

24 pcs – 600W LED Sports Floodlights
20 pcs – 400W LED Sports Floodlights
4 pcs – 400W LED Sports Floodlights (LW series)

Total system power: ≈ 24,000 W

Each luminaire uses high-efficiency LED chips and professional asymmetric optics designed specifically for tennis court lighting.

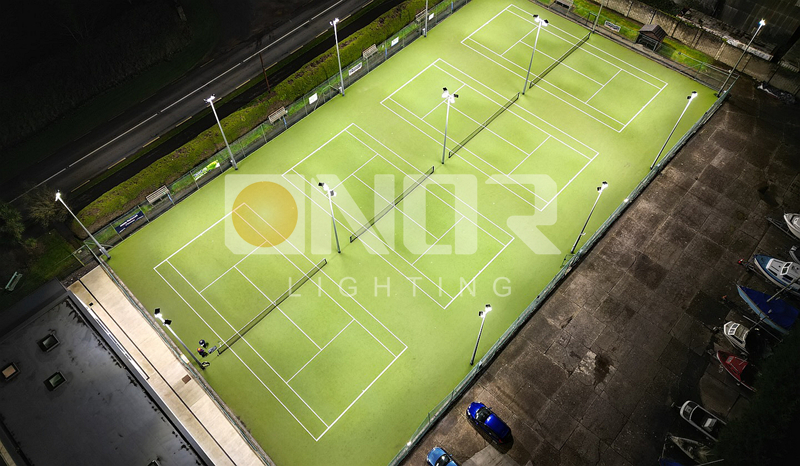

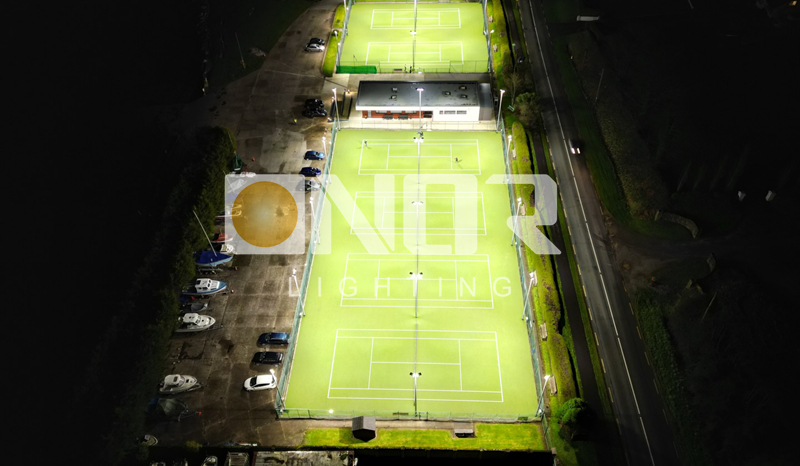

Pole Height & Layout

Lighting pole height: 10 meters
Precision aiming using DIALux-calculated angles
Optimized pole positions to ensure:

Even light distribution
Low glare (reduced GR values)
No excessive brightness at net or baseline areas

The 10m pole height strikes an ideal balance between uniformity, glare control, and installation cost.

Measured Illuminance Performance (DIALux Results)

The lighting performance is verified through detailed DIALux calculation grids for each court.

Average Horizontal Illuminance (Eav)

Across all six courts:

Average illuminance range: 539 – 576 lux
Typical values:

Court 1: 545 lux
Court 2: 548 lux
Court 3: 564 lux
Court 4: 539 lux
Court 5: 576 lux
Court 6: 575 lux

This level comfortably meets the requirements for club-level and competitive tennis play.

Uniformity Performance

Uniformity results show outstanding consistency:

U0 (Emin / Eav): up to 0.88 – 0.91
Emin / Emax: up to 0.80 – 0.82

Such high uniformity ensures:

No visible dark zones
No over-bright areas
Stable visual conditions during fast rallies

Ultra-Low Glare & Spill Light Control

A key design goal of this project was glare reduction.

Carefully selected beam angles (30×90° optics)
Precision aiming to avoid direct glare in player sightlines
Extremely low light spill beyond court boundaries
Minimal impact on surrounding roads and parking areas

This makes the system highly suitable for urban tennis facilities and residential-adjacent locations.

Energy-Efficient & Sustainable Tennis Lighting

Compared with traditional metal halide systems, this LED solution offers:

Significant energy savings
Instant on/off with no warm-up time
Long service life and reduced maintenance
Lower operating and replacement costs

It is a future-proof LED tennis court lighting upgrade designed for long-term operation.

Why Choose ONOR LED Lighting for Tennis Courts?

Professional LED sports lighting manufacturer
Custom DIALux lighting design & simulation
Proven experience in multi-court tennis projects
High-quality, reliable LED floodlights
Focus on glare control, uniformity, and sustainability

Looking for a Professional Tennis Court Lighting Solution?

If you are planning a new tennis court or upgrading existing facilities, ONOR LED Lighting provides complete LED tennis court lighting solutions tailored to your requirements.
