Apolo UFO LED High Bay Light
Short Description:

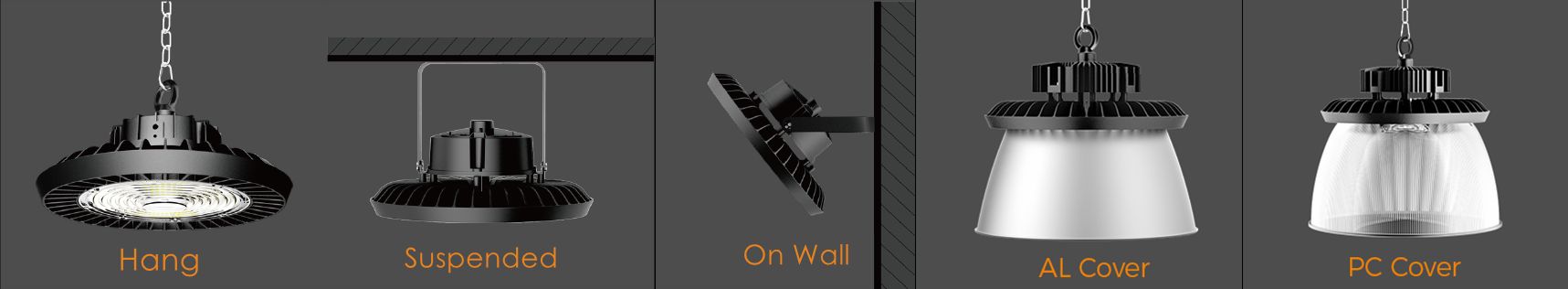

Apolo LED high bay has super powerful and high light output LED technology with remarkable energy savings for a quick return on investment. Offered in narrow and wide beam distributions, and delivering up to 36,000 lumens, different bracket for various projects, the product can include a dimming feature and be equipped with a motion sensor.

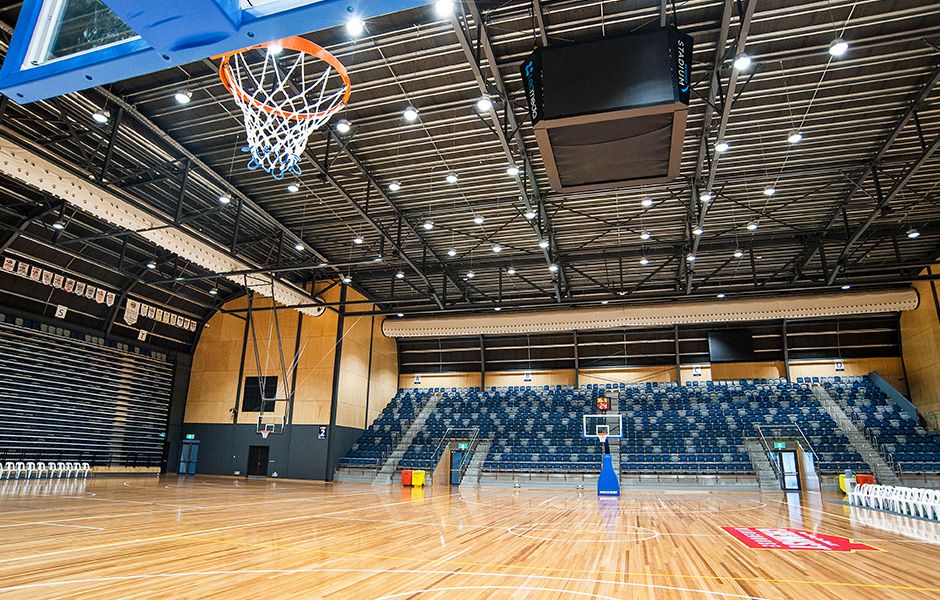

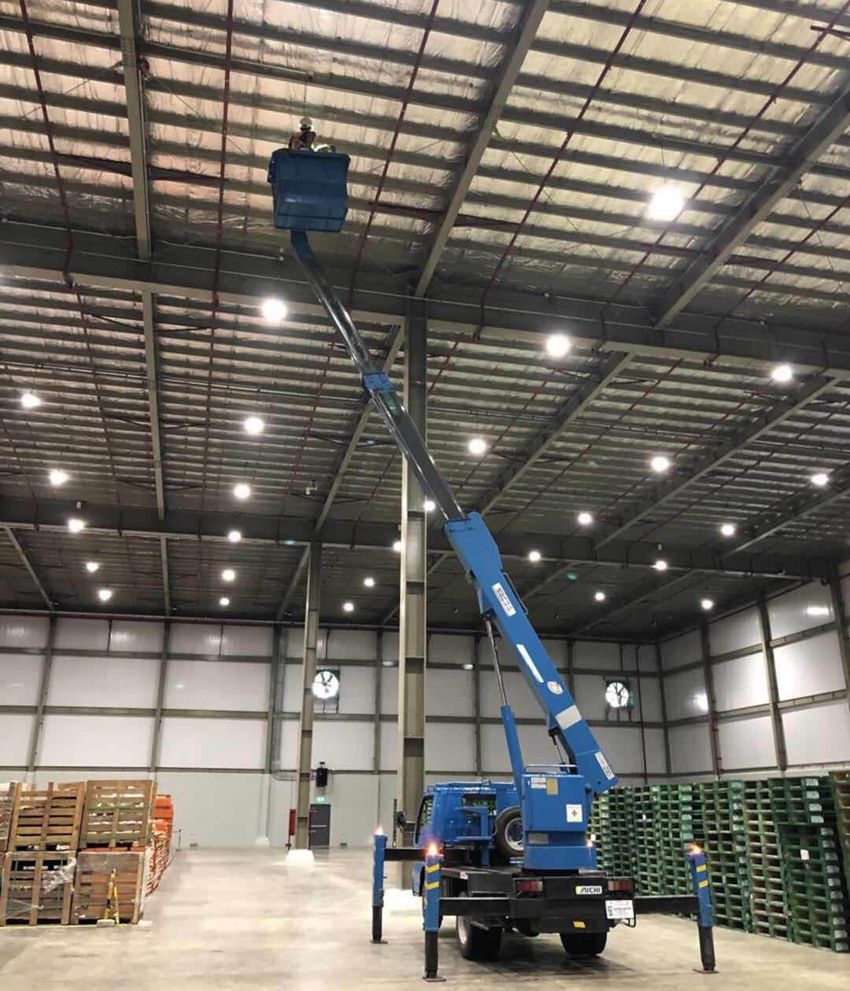

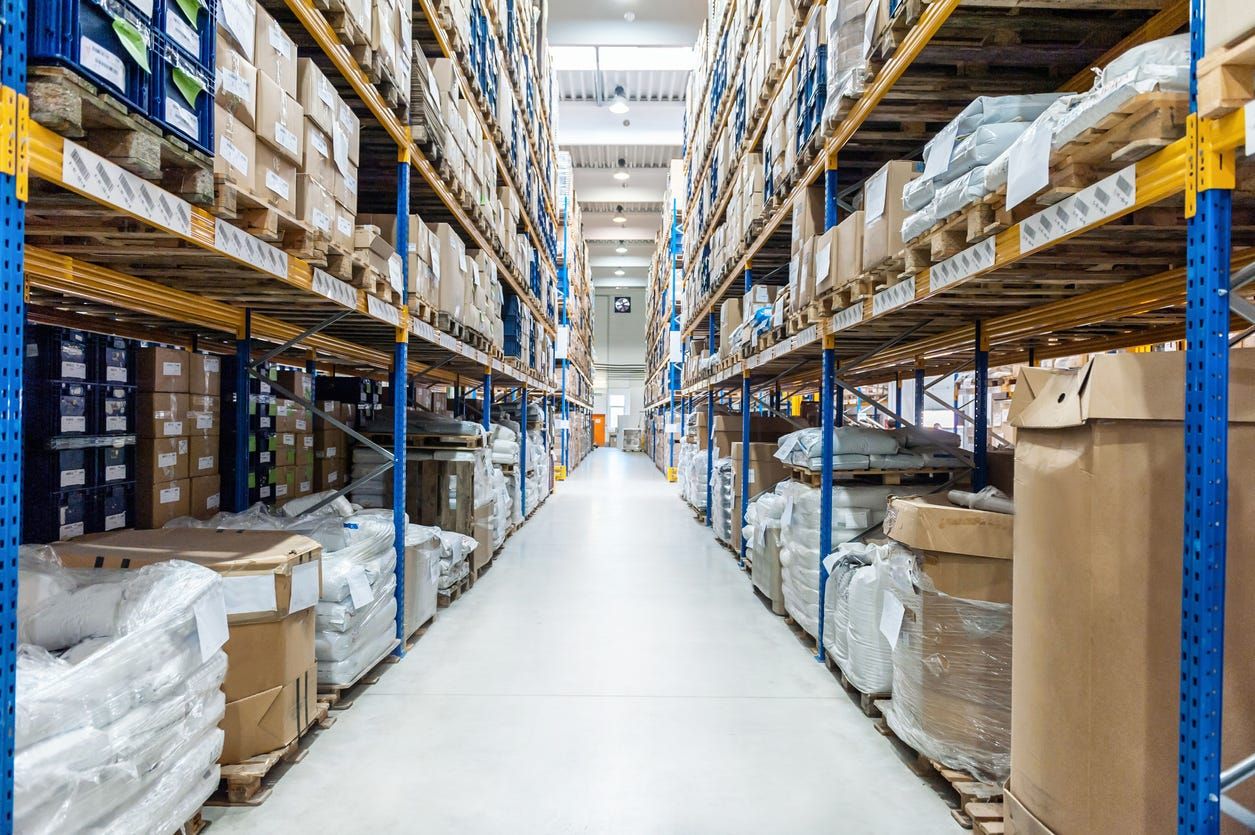

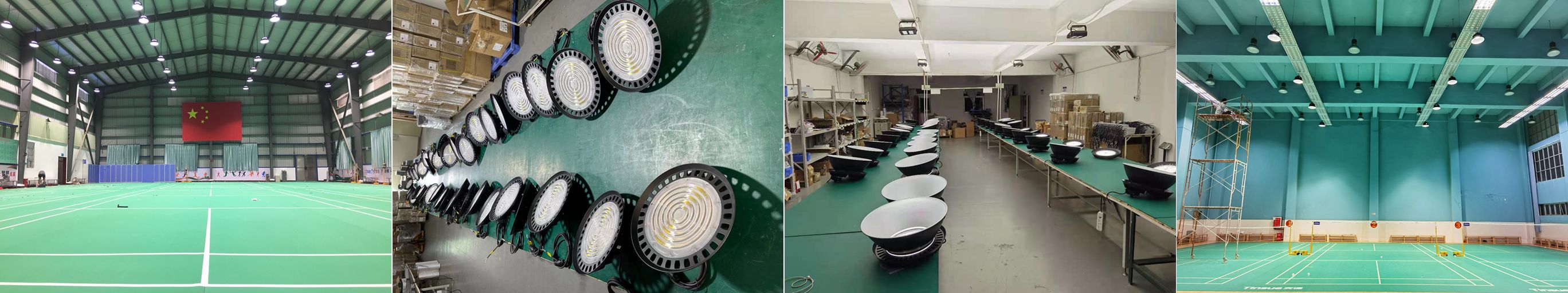

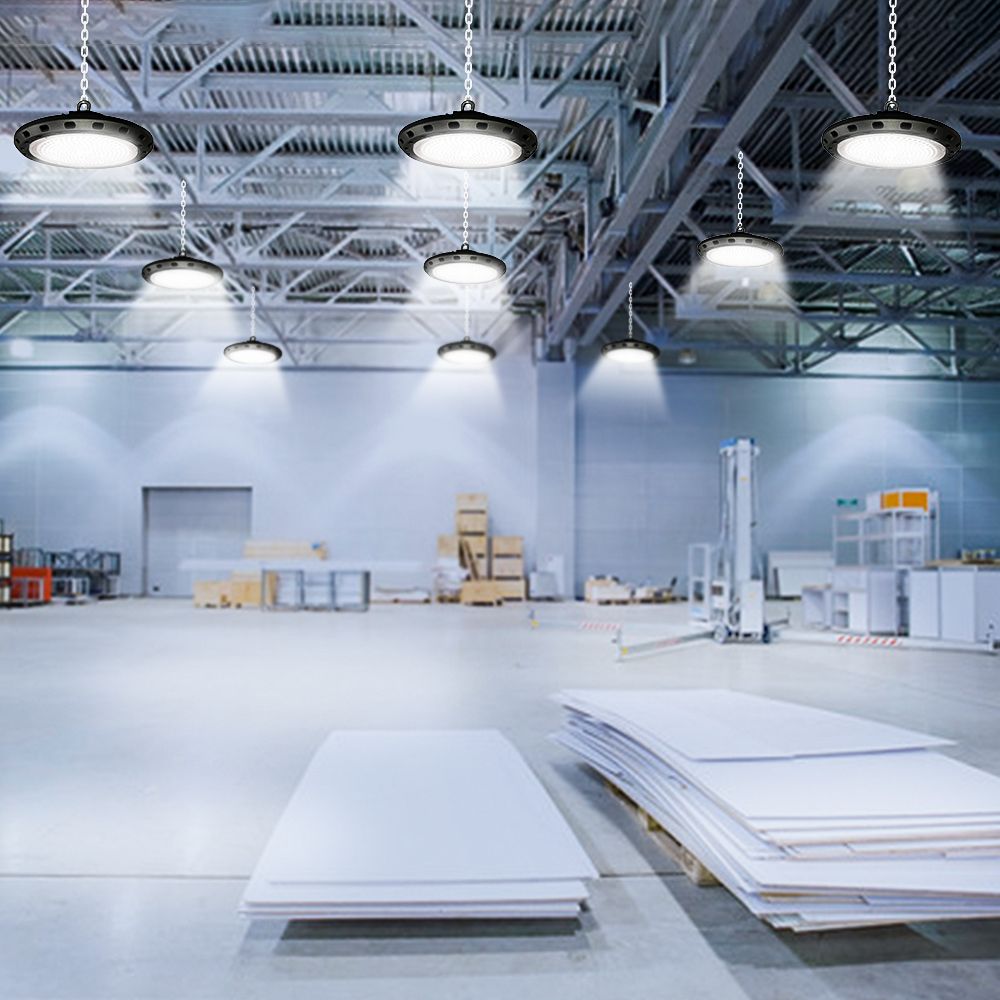

Perfect for workshops, garages, warehouses, halls, supermarkets…
-LED: Osram
-Driver: Meanwell
-0-10 V dimmable

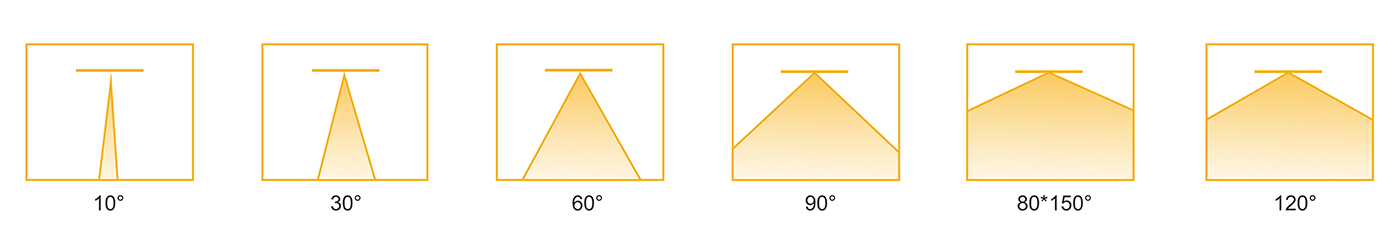

-Adjustable beam angle, 60°/90°/110° on options
-Luminous Efficiency: 155 lm/w
-CRI>Ra70
-CCT:3000K-5700K
Ranges from 100W – 240W
Smarter Brighter Smaller Lighter
Apolo series LED highbay is an unique professional industrial light. It adopts thick carved die-casting heatsinks and looks like an artwork more than a light.

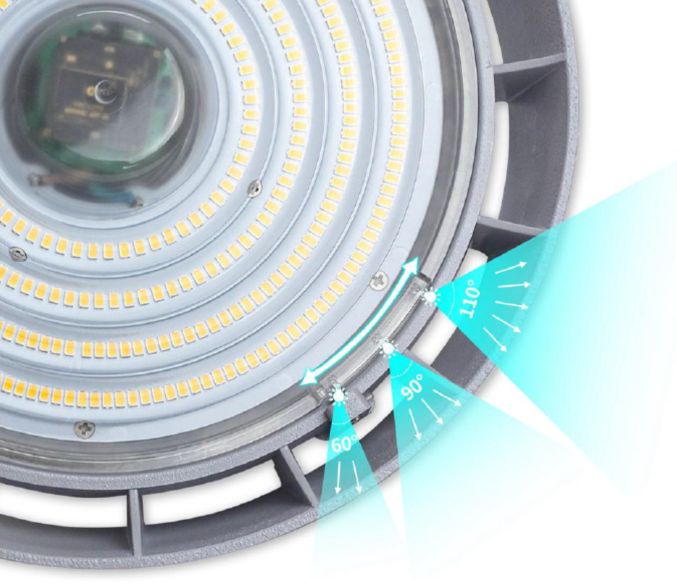

Biggest unique advantage is the adjustable beam angle 60°/90°/110° which can be changed easily by finger twist. Now, one light is suitbale for all projects, one light has 3 beam angles!
The polished anti-corrosion powder coated surface carefully protects every core component from damage.
6063 aluminum shell ensures strong structure and stable cooling system to maintain 50.000 hours longevity.
√ Osram 2835 LEDs, 155-200lm/w, CRI>Ra75/80/92. Junction temperature <69℃
√ Lifud LED Drivers, wide AC90V~305V, PF>0.96, low THD<9%

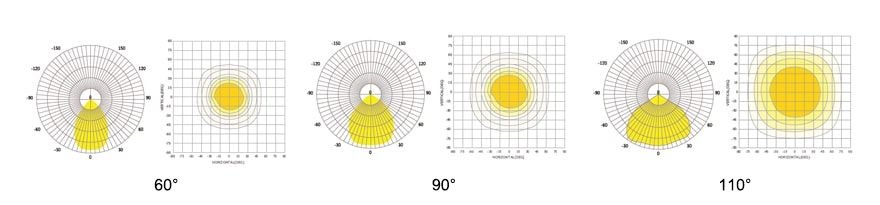

√ Light transmittance up to 98%. Beam angles of 60°/ 90°/ 110°adjustable without tools
√ Unique design on appearance. Simple installation, easy disassembly.
√ High strength PURE 6030 aluminum alloy. 30-50% less weight.
√ Made for the harshest environments
√ Easy to install and focus
√ The polished anti-corrosion powder coated surface carefully protects every core component from damage.√ IP68 connectors inside for cabling, much safer and convenient for maintenance

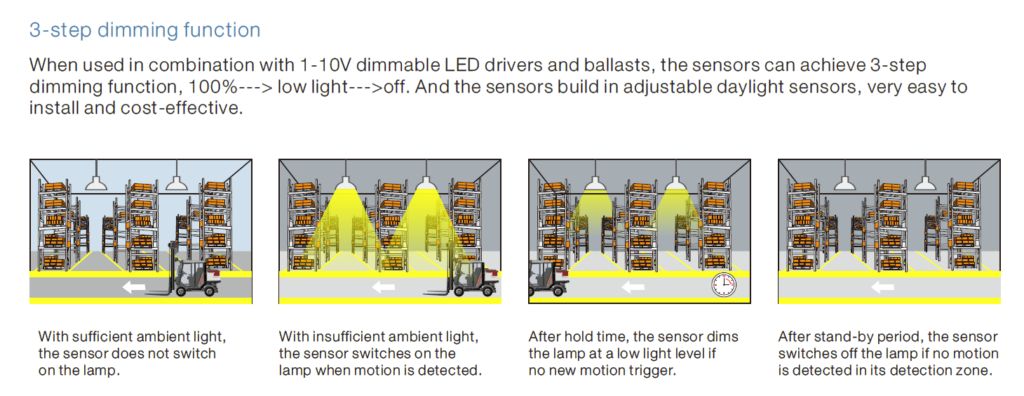

√ Microwave sensor built-in optional
√ Housing Color: Grey, Black, White
The patent lens cover diffuses the dazzling light generated by individual LEDs and shed a gentle beam creating a harmonious lighting environment.
|
Model NO. |
ONOR-HB-100 |
ONOR-HB-150 |
ONOR-HB-200 |
ONOR-HB-240 |
|
Rated Power |
50W |
100W |
150W |
200W |
|
Lumen Flux |
15,500lm |
23,250lm |
31,000lm |
36,000lm |
|
LED Type |
Osram 2835 |
|||
|
Color Temperature |
2200K-6500K |
|||
|
Working Temperature |
- 20℃ to 45℃ |
|||
|
Input Voltage |
90-305VAC |
|||
|
Net Weight |
1.5kg (without driver) |
1.5kg (without driver) |
1.8kg (without driver) |
1.8kg (without driver) |
|
Beam Angle |
60°/90°/110° |
|||
|
Materials |
Aluminum 6063 Body + PC Lens |
|||
|
Certificates |
CE RoHS |
|||
|
Ingress Protection Grade |
IP65 |
|||
|
Dimension |
L146*W108*H268mm |
L146*W108*H523mm |
L146*W108*H777mm |
L146*W108*H1032mm |
|
Dimming Model |
0-10V, Zigbee, Dali, Microwave, PIR |
|||
-
Brochure -
IES Files
