Ugao Miravalles Soccer Field Lighting Renewals





ONOR Lighting supplied a complete LED floodlighting renewal solution for the Ugao Miravalles soccer field in Spain. The project uses 16 VEGA 1200W sports floodlights with AS-1 polarized lenses, 5000K cool-white output and 16-meter mounting poles. The renewal was developed to improve nighttime field visibility, support more controlled light distribution and provide a reliable lighting platform for regular training and community sports use.





Project at a Glance

The Project Challenge

A soccer field lighting renewal needs to solve more than a simple brightness problem. Players must be able to track the ball and read the field comfortably, while coaches and facility operators need dependable lighting for repeated evening use.

For Ugao Miravalles, the lighting concept focused on practical field visibility, directional optical control and a robust LED upgrade that could work from 16-meter mounting positions. The high poles create long throw distances, making beam selection and aiming especially important.

Because the site is used for regular sports activity, the system also needed to support comfortable training conditions while directing as much useful light as possible toward the field.







The ONOR Lighting Solution

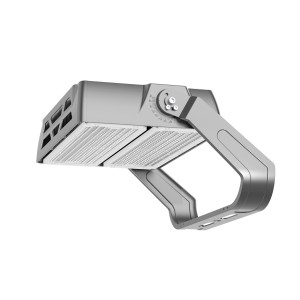

ONOR selected the VEGA platform for the renewal. Sixteen 1200W VEGA floodlights were installed, giving a nominal luminaire power of 19.2 kW across the project. The luminaires use AS-1 polarized lenses and 5000K cool-white output. The system is mounted on 16-meter poles, providing the height needed for broad coverage across the playing surface.

Key design choices

• 16 × VEGA 1200W LED sports floodlights for the complete field renewal.
• AS-1 polarized lenses selected to help shape light toward the playing area and support glare management.
• 5000K CCT for a clean, neutral-cool sports-lighting appearance.
• 16 m mounting height to provide wide field coverage and suitable aiming geometry.
• Project commissioning and final aiming to align the installed system with the intended field coverage.



Why the AS-1 Polarized Lens Matters

High-power sports lighting is most effective when the optical system puts useful light on the field instead of simply producing a high lumen value. For Ugao Miravalles, the AS-1 polarized lens was used as the project optic to provide directional control. This project-specific optical selection helps manage long throw distances from 16-meter poles and limit unnecessary light outside the intended playing area.









Installation & Commissioning

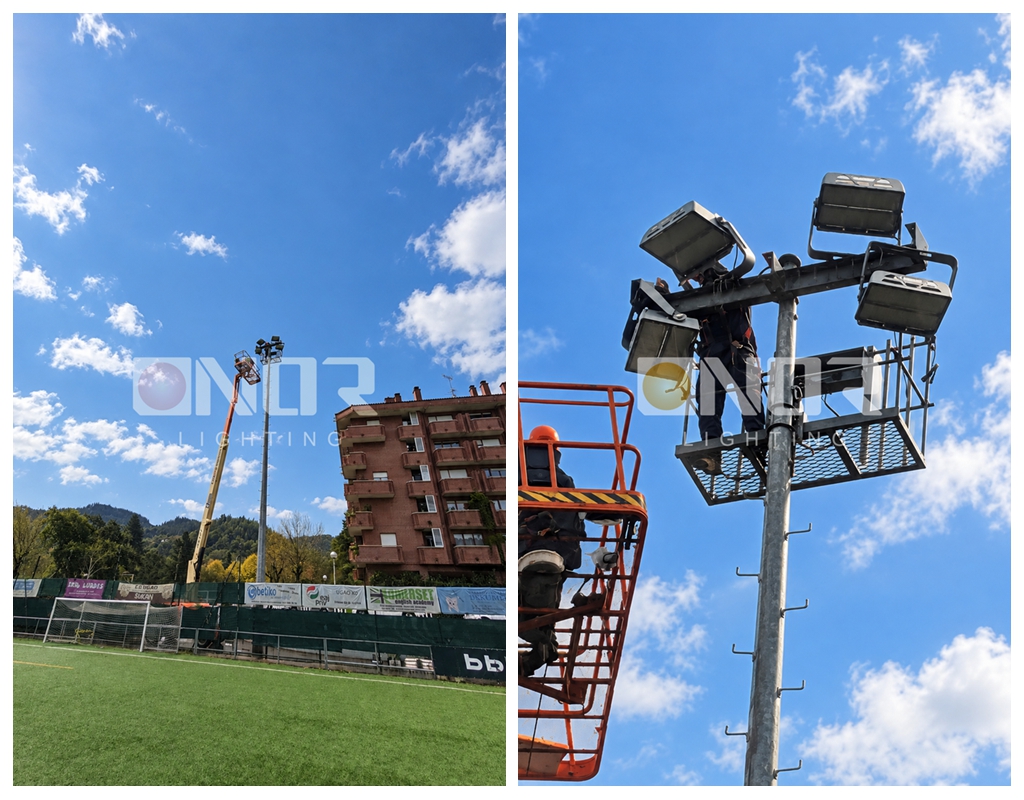

The on-site photographs show the VEGA luminaires being installed at the top of the existing high poles. Because sports-lighting performance depends heavily on aiming, installation is not treated as a simple mechanical mounting task. Each fixture position, tilt and orientation influences how the light reaches the field.

After installation, commissioning and aiming are used to align the luminaires with the design intent. This final stage is important for maintaining usable coverage across the playing surface and for avoiding unnecessary light in directions that do not contribute to the field.



Completed Field & Project Benefits

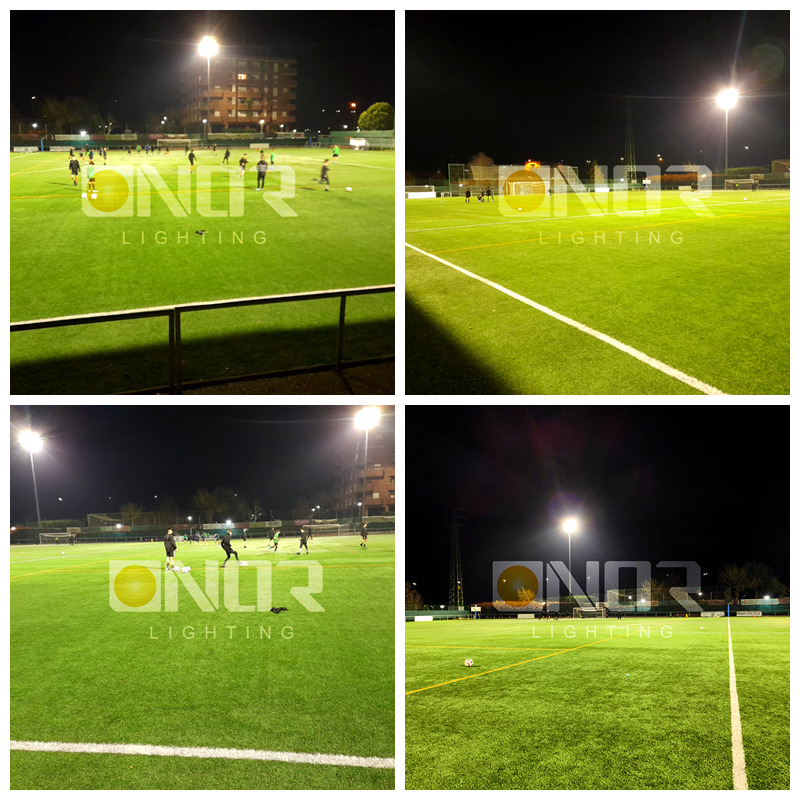

The completed nighttime photos show a brightly illuminated playing surface in active training use. The renewed system provides a modern LED platform for the facility and gives the field a clearer, more consistent nighttime appearance.

• Improved nighttime field visibility for training and community sports use.
• Directional optical control using the AS-1 polarized lens.
• High-output VEGA LED floodlights suitable for long-throw sports applications.
• A consistent 5000K lighting appearance across the renewed system.
• A robust 16-meter pole-mounted configuration designed for wide-area field coverage.





Conclusion

The Ugao Miravalles soccer field lighting renewal is a practical example of how a sports facility can be upgraded with a focused LED solution rather than treating the project as a simple fixture replacement. By combining VEGA 1200W floodlights, AS-1 polarized optics, 5000K output and 16-meter mounting positions, ONOR delivered a field-lighting package centered on visibility, optical control and dependable performance.
