lightwing Mobile Tower LED Floodlight

Short Description:

lightwing mobile tower LED flood lights are highly portable and compact than conventional light towers or work lights. Diffused light is suitable for indoor spaces and outdoor events, which is an ideal solution for application road construction, paving operations,bridge construction, rail construction, excavation,pit- and tunnel construction, neighborhood associations, schools events,camping, sports events and parties, parking lots, film sets, parking lots, search and rescue operations.

Features

1. Quick, and easy set-up and transportation

2. Equipped with 200-800W LED rated at 100,000 hours

3. High lighting efficiency with 160lm/w

4. LED light cover is constructed of heat and water resistant material

5. Aluminium alloy and stainless steel ensure anti-rust

9. 5-Year limited warranty


Product Detail

Specifications

Download

Overview

The high-performance LED lights attached to a light tower that extends up to 23ft into the air. The intense bright Light produced can be focused and repositioned to suit your lighting needs. The advanced LED Technology and proprietary optics distribute the Light to the target area in a prescribed manner. This technology creates sites with incredible uniformity and visual comfort white requiring fewer lumens. The LED lights have a corrosive resistant powder-coated fi nish stainless steel hardware, and chlorine resistant treated gasket

Advanced LED technology and proprietary optics distribute the light to the target area in a prescribed manner. This creates sites with incredible uniformity and visual comfort while requiring fewer lumens.

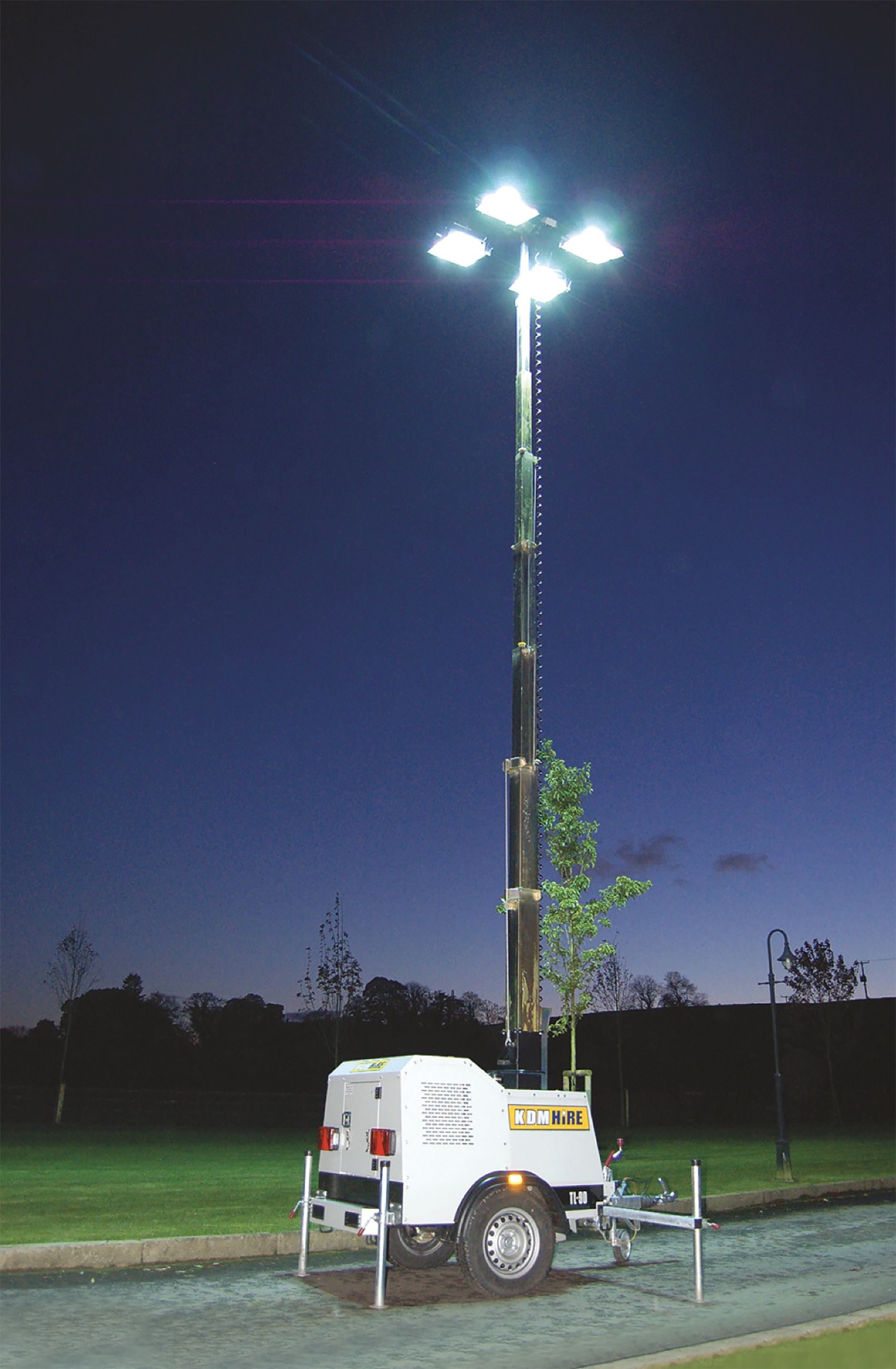

lightwing Mobile Lighting Tower Mobile Tower Lighting

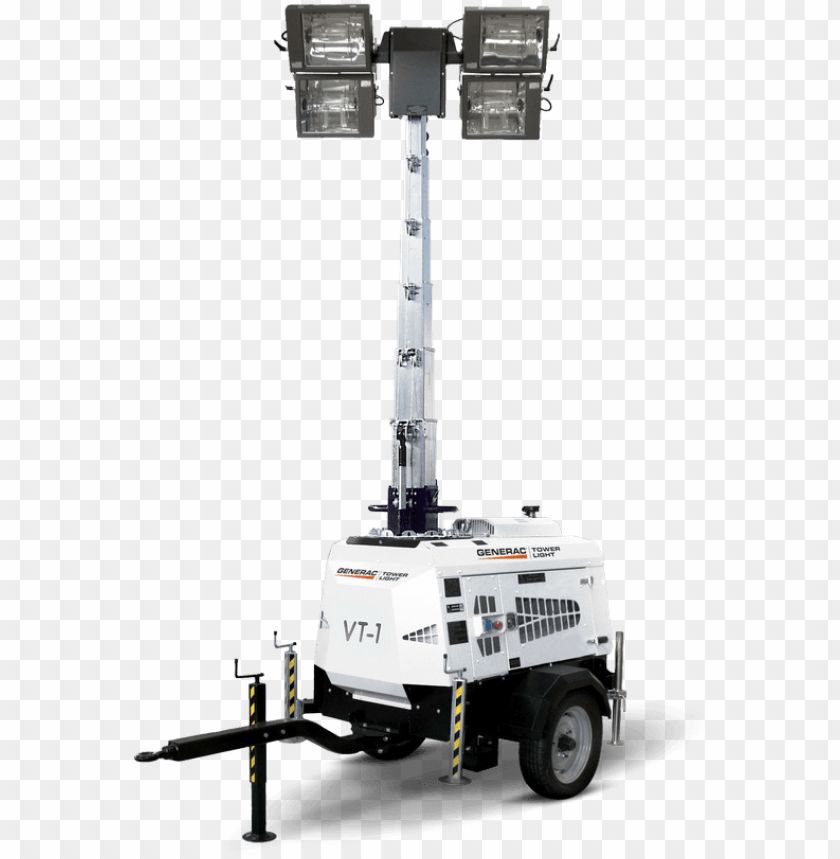

Tower Led For Mobile Light Tower

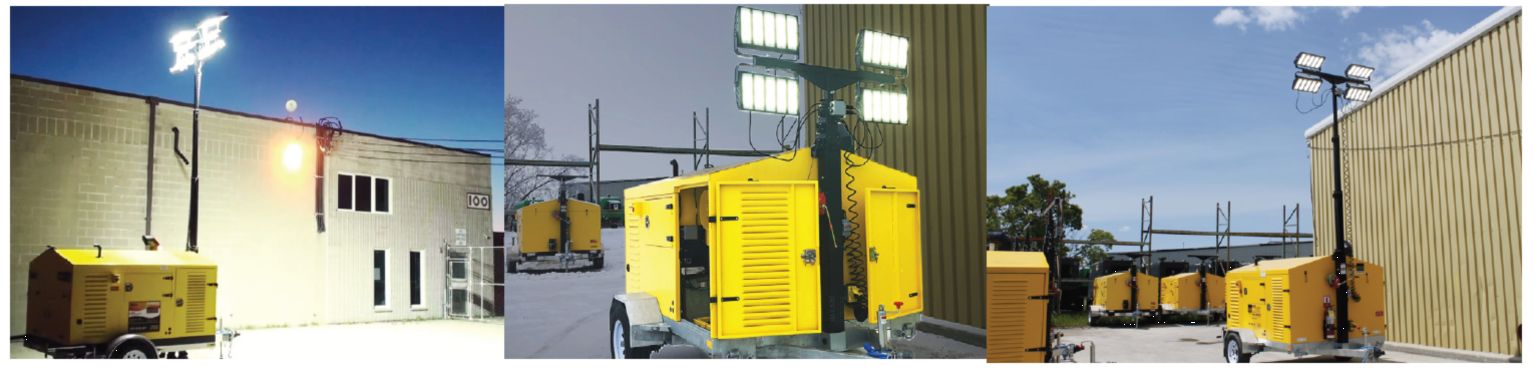

PROJECTS OF OUR lightwing Mobile Lighting Tower Mobile Tower Lighting
lightwing Mobile Tower LED Floodlight

  • Previous:
  • Next:

  • lightwing Mobile Tower LED Floodlight2

    Model NO.

    LW-200

    LW-400

    LW-600

    LW-800

    LW-1200

    LW-1600

    System Power (watt)

    200

    400

    600

    800

    1200

    1600

    Replace (MH/HID)

    400W±

    900W±

    1500W±

    2000W±

    2500W±

    3500W±

    Lighting Efficiency

    160LM/W

    Delivered Lumen (LM)

    32,000lm

    64,000lm

    96,000lm

    128,000lm

    192,000lm

    256,000lm

    Input Voltage (V)

    AC90-305V, AC347-480V

    Power Factor

    0.98

    Color Temperature (Kelvin)

    3500K, 4000K, 5000K, 5700K, 6500K

     Beam Angles

    10°, 30°, 60°, 90°, 80*150°, Asy P45 30*110°, Asy P60 30*90°

    CRI

    74/80/92

    Net Weight (with drivers)

    5.0Kg

    10.5kg

    14.0kg (Pro)

    12.0kg

    9.0kg ( Pro)

    22.0Kg

    25.0Kg(Pro)

    26.0Kg

    33.2Kg(Pro)

    46.0Kg

    Net Weight (without drivers)

    3.8Kg

    7.7kg

    12.0kg (Pro)

    18.0kg

    15.0kg (Pro)

    17.5Kg

    20.5Kg(Pro)

    22.0Kg

    35.9Kg(Pro)

    39.0Kg

    EPA/Wind Area (m²)

    0.028

    0.06

    0.03 (Pro)

    0.12

    0.093 (Pro)

    0.16

    0.13 (Pro)

    0.24

    0.21 (Pro)

    0.31

    Operating Temp ()

    -40℃ ~ +55℃

    Surge Protection Device

    20KV

    Ingress Protection

    IP67

    Housing Color

    RAL9007, Black, White

    Hardware Materials

    AISI304 for bracket,screws,fasteners, gasket (AISI316 for harsh environment) Aluminum for driver box, visor, AISI304 for wire guard

    Electrical Insulation Class

    I

    Dimming Control (optional)

    Switch,Zigbee Wireless,Dali,DMX

    Surface Treatment

    Gavanizing for brackets,visor,cover,Sand-blasting for aluminum parts,Akzo Nobel Powder Coating for All

    Expected Life Span (hrs)

    >100,000 hrs.

    Warranty

    10-Years on the LEDs, 7-Years on the Driver; Complete Warranty @ www.onorlighting.com

    Mobile lighting towers mainly serve industries and scenarios

    1. Construction lighting: used in engineering construction, urban construction pipelines, road paving, road maintenance, road rescue;

    2. Emergency lighting: used in emergency rescue, earthquake preparedness, armed police fire fighting, earthquake disaster relief, flood prevention and rescue;

    3. War preparation lighting: used in war preparation emergency, various rescues, field training, camping and distributing;

    4. Mine lighting: used in open-pit mine lighting, mine tunnel lighting, distributed storage and transportation, mine camping;

    5. Mobile lighting: used in sports events, film and television shooting, airport backup, railway power;

    6. Emergency lighting: used in transportation, electricity, water pipe, gas, and telecommunications construction.

    It can be seen that the use scenarios of mobile lighting towers are very wide. As a supplementary measure for power supply after disasters, mobile lighting fixtures play an irreplaceable role in the rapid development of disaster relief work and the maintenance of basic daily life lighting. They are used as outdoor supplies. Part of it shows the strong momentum of the rapid development of the sunrise industry.
