Product Overview

High-Efficiency Outdoor LED Street Lighting

• Powerful and uniform illumination
• Optimized energy efficiency
• Lower operating and maintenance costs

Designed for Roads, Highways & Infrastructure

• Urban and municipal roads
• Highways and expressways
• Industrial and public areas

Flexible Power Options

• 50W / 75W / 100W / 150W / 200W / 250W
• Suitable for different pole heights and road widths

Key Advantages

   High Efficiency up to 180 lm/W

• Maximum energy savings
• Reduced electricity consumption

    Professional Anti-Glare Optics

• Full cut-off PC lenses
• T2S / T2M / T3M light distribution
• Improved visual comfort and safety

   Durable & Weatherproof Design

• Integrated die-cast aluminum housing
• Excellent heat dissipation
• Built for long-term outdoor use

   IP66 & IK08 Protection

• Dust-tight and waterproof
• High impact resistance

   Smart Lighting Ready

• 0–10V / 1–10V dimming
• Photocell sensor
• Time control & IoT systems

   Easy Installation & Maintenance

• Snap mounting design
• Tool-free disassembly

   Long Lifespan

• ≥50,000 hours (LM80 @ 35°C)

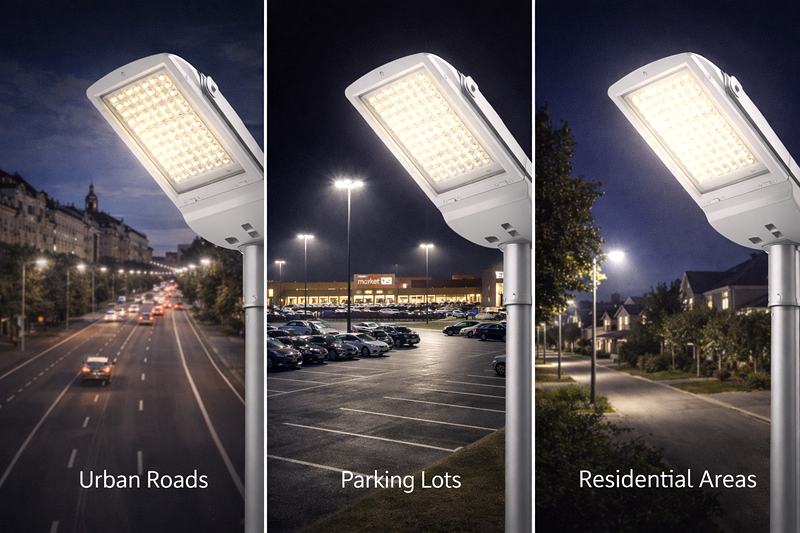

Applications

Ideal for a wide range of outdoor lighting projects:

• Urban & municipal roads
• Highways & expressways
• Residential streets
• Industrial parks
• Parking areas
• Public infrastructure

Optical System & Light Distribution

Precise Light Control

• Professional PC full cut-off optical lens
• Uniform illumination with reduced glare
• Compliance with roadway lighting standards

Available Beam Angles

• T2S – Standard road distribution
• T2M – Medium road distribution
• T3M – Wide road distribution

• Reduced light pollution
• Improved road visibility

Smart Lighting Control (Optional)

Designed for smart city and energy-saving solutions:

• 0–10V / 1–10V dimming
• Photocell (day/night sensor)
• Time scheduling
• Smart city & IoT lighting systems

• Flexible lighting management
• Further energy optimization

Product Details

   High-Brightness LED Source

• A-class LED chips
• Stable output and high efficiency

   Heavy-Duty Aluminum Housing

• Die-cast aluminum structure
• Superior thermal management

   High-Transmittance Optical Lens

• PC lens with >90% transmittance
• Uniform and efficient light output

   Reliable LED Driver

• High efficiency and flicker-free
• Long service life

   Adjustable Mounting Adapter

• Ø42 / Ø50 / Ø60 mm mounting options
• Compatible with different pole sizes

   IP66 Waterproof Design

• Fully sealed construction
• Suitable for wet and harsh environments

Technical Specifications

• Power range: 50W–250W
• Luminous efficacy: 140–180 lm/W
• Luminous flux: 7,000–45,000 lm
• CCT: 3000K / 4000K / 5000K / 6000K
• CRI: ≥70
• Power factor: >0.95
• THD: <15%
• Input voltage: AC100–240V, 50/60Hz
• Operating temperature: -40°C to +50°C
• IP rating: IP66
• Impact rating: IK08
• Lifespan: ≥50,000 hours

Models & Dimensions

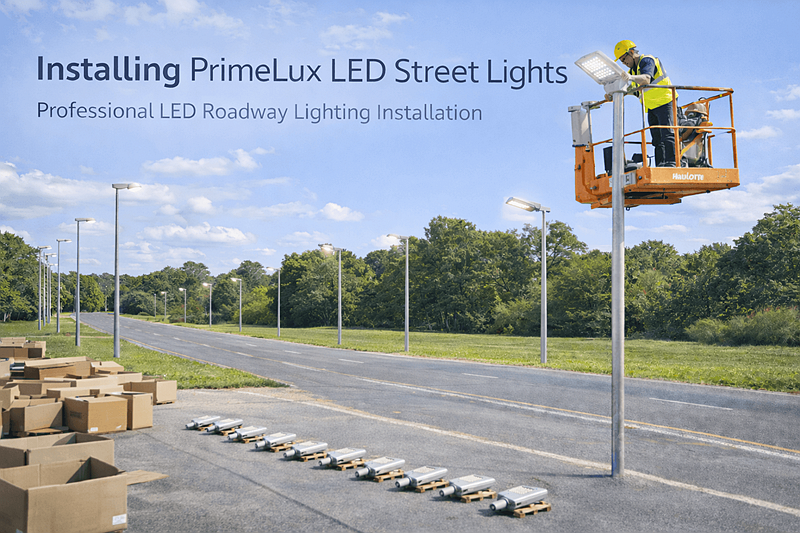

Installation & Mounting

• Standard installation hole: 60 mm
• Replaceable mounting head: Ø42 / Ø50 / Ø60 mm
• Adjustable installation angle
• 90° mounting shaft
• Rotation adjustable in 5° intervals

• Ideal for new installations and retrofit projects

Packaging & Logistics

• One unit per carton
• Export-grade protective packaging
• Optimized for global transportation
• Suitable for sea, air, and land shipping

Quality & Reliability

Built to meet international quality standards.

• Strict quality control process
• Fully tested before shipment
• Reliable performance for long-term outdoor use
