VEGA LED stadium floodlight delivers ULOR 0%, precise optics, lightweight modular design and flicker-free

lighting for professional football fields and TV broadcasting.

Product Introduction

The VEGA Series LED Stadium Floodlight is a high-performance, professional-grade sports lighting solution specifically engineered for football stadiums, large sports fields, high-mast installations, and TV broadcasting venues.

Designed after years of in-depth research into sports lighting challenges, VEGA delivers exceptional light uniformity, precise glare control, ultra-low light pollution, and outstanding reliability, making it an ideal choice for modern stadiums and large-scale outdoor sports facilities.

VEGA is not a conventional high-power floodlight. It is a purpose-built sports lighting system that meets strict international standards for professional competition, urban light pollution regulations, and 4K / HD broadcasting requirements.

Key Features & Competitive Advantages

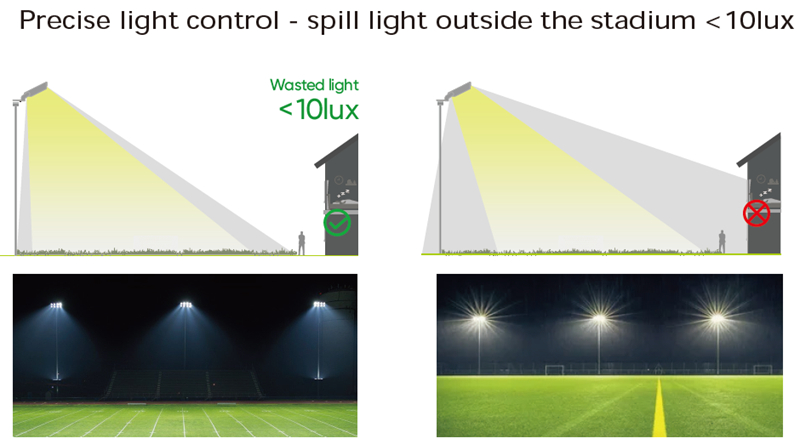

Ultra-Precise Optical Control with Minimal Light Pollution

One of the most critical challenges in stadium lighting today is controlling spill light and glare, especially in urban and residential environments.

VEGA adopts patented precision optical lenses that accurately direct light only to the target areas:

• ULOR (Upward Light Output Ratio) up to 0% with asymmetric optics

• ULOR <1.5% with symmetric narrow beam optics for large stadiums

• Dramatically reduced obtrusive light and spill light

• Fully compliant with European light pollution regulations

This ensures maximum lighting efficiency, improved visual comfort, and zero complaints from surrounding residents.

Professional Optics for All Sports Field Applications

VEGA offers a complete range of professional beam angles, allowing lighting designers to achieve optimal results in different stadium layouts:

• NB (Narrow Beam) – long throw applications

• MB (Medium Beam) – balanced coverage

• AS-1 (Asymmetric) – sideline and perimeter lighting

• AS-LR (Long-Range Asymmetric) – high mast and large football fields

No luminaire rotation on the crossbar is required, simplifying installation and ensuring stable fixation under wind load.

Designed for 4K & HD TV Broadcasting

For professional sports venues, lighting quality must meet broadcast standards—not just brightness.

VEGA is optimized for TV broadcasting and super slow-motion capture, featuring:

• Flicker-free professional LED drivers

• TLCI > 95

• GR < 35

• High CRI LED options up to Ra 92

This guarantees excellent color reproduction, smooth video output, and superior visual clarity for both live broadcasting and high-speed cameras.

High Power Output with Lightweight Modular Design

VEGA delivers extremely high power while maintaining a compact and lightweight structure:

• Maximum power up to 1800W using only 3 LED modules

• 1200W luminaire weight: approx. 19 kg (without driver)

• 1800W luminaire weight: approx. 27 kg (without driver)

• Around 40% lighter than conventional stadium floodlights

This significantly reduces:

• Structural load on poles

• Transportation cost

• Installation risk

• Retrofit difficulty for existing masts

Modular Construction for Easy Maintenance & Lower Lifetime Cost

VEGA is designed to minimize total cost of ownership (TCO):

• Modular LED design with only 4 hidden screws

• Quick replacement of LED modules and optics

• Remote driver system available (on bracket, on pole, inside pole, or on ground)

• Reduced maintenance time and labor cost by at least 30%

Different CCT modules can be stocked and replaced quickly, ensuring fast delivery for urgent projects.

Advanced Thermal Management & Long Lifespan

Reliable heat dissipation is essential for high-power sports lighting.

VEGA features:

• 4D air convection heatsink design

• Large heat radiation surface area

• Ultra-low windage profile (low EPA)

• Pressure-balancing respirator to protect LEDs

This ensures:

• Stable operation in harsh outdoor environments

• Operating temperature range from -40°C to +55°C

• Lifespan over 100,000 hours (L70)

Safe, Robust & Contractor-Friendly Installation

VEGA is engineered for safety and ease of installation:

• Adjustable mounting angle: +105° / -105°

• Integrated laser aiming device for precise daytime focusing

• High-strength bracket supporting over 10 times the luminaire weight

• Safety rope for double protection

• Tidy internal wiring with hidden connectors

• Metal cable pipe to prevent bird damage

These features make VEGA ideal for high mast and large stadium installations.

Technical Specifications Overview

• Power range: 500W / 600W / 1000W / 1200W / 1500W / 1800W

• Luminous efficiency: 140–155 lm/W

• CCT options: 3000K / 4000K / 5000K / 5700K

• CRI: 75 / 80 / 92 (optional)

• LED chips: OSRAM / CREE / Lumileds

• Driver: Inventronics

• Input voltage: 100–277VAC / 249–528VAC

• Dimming: DALI / DMX / Zigbee

• Surge protection: 10kV / 20kV optional

• IP rating: IP67

• IK rating: IK10

• Certifications: ENEC / CB / CE / RoHS / LM-79 / TM-21

• Warranty: 5 years (extendable by agreement)

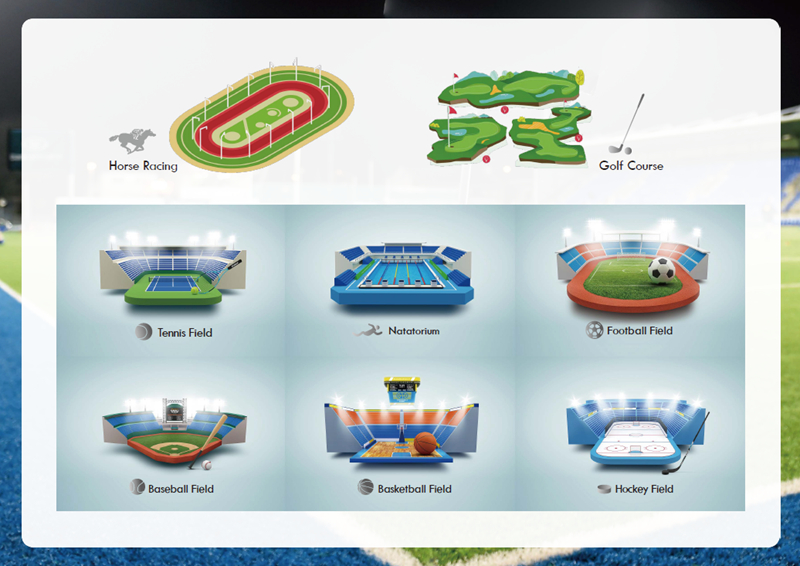

Typical Applications

• Football stadiums

• Multi-purpose sports arenas

• Training fields

• High mast sports lighting

• Tennis courts

• Baseball fields

• Basketball courts

• Hockey fields

• Horse racing tracks

• Golf courses

• Natatoriums

Why Choose VEGA LED Stadium Floodlight?

• Purpose-built for professional sports lighting

• Outstanding optical precision with ultra-low light pollution

• Broadcast-ready lighting performance

• Lightweight yet ultra-robust structure

• Lower installation and maintenance costs

• Proven reliability in demanding outdoor environments

VEGA is the ideal lighting solution for modern stadiums that demand performance, efficiency, and compliance.
