Titan LED Linear High Bay Light

Short Description:

Titan LED linear highbay light could be used in warehouses, production line, farming, planting, indoor parking lots, and exhibition halls. It improves cost performance and competitiveness in the market. It equipped with one-stop smart lighting solutions and smart integrated lighting apps to help you solve more engineering projects and other smart lighting scenarios.

Features

1.Ranges from 50W-200W

2.Aluminum heatsinks

3.Lumileds LEDs

4.Meanwell ELG driver

5.IP 65

6.Three Steps Dimmable

7.Support three hours Emergency lighting

8.Can be used as pisicultural lighting

ENQUIRY ONLINE

Product Detail

Specifications

Download

Product Tags

Overview

√ Philips Lumileds 3030 LED, 140lm/w, CRI >Ra80. Junction temperature <65°C

√ Top quality MeanWell/Inventronics LED Drivers, wide AC90V~305V, PF>0.98, low THD<9%

√ Ultra-thin modular heat dissipation guarantees long lifetime up to 62,000+ hours

√ Light transmittance of PC cover up to 98%. Asymmetric and symmetrical beam angles of 60*90°/ 70*110° / 70*140°

√ New design on appearance. Simple installation, easy disassembly. Wide range of application

√ High strength 6063-T5 aluminum alloy. Outdoor powder spraying and Uv protection materials coated , real anti-corrosion

√ Secondary optics design, anti-glare. Low UGR<20

√ Switch/PIR/DALI and Zigbee dimming models are available

√ CE RoHS ETL FCC and IK10 approved, 5 years warranty

√ Widely used in outdoor sports field, port, workshop, industrial lighting area, warehouse, ship yard and etc.

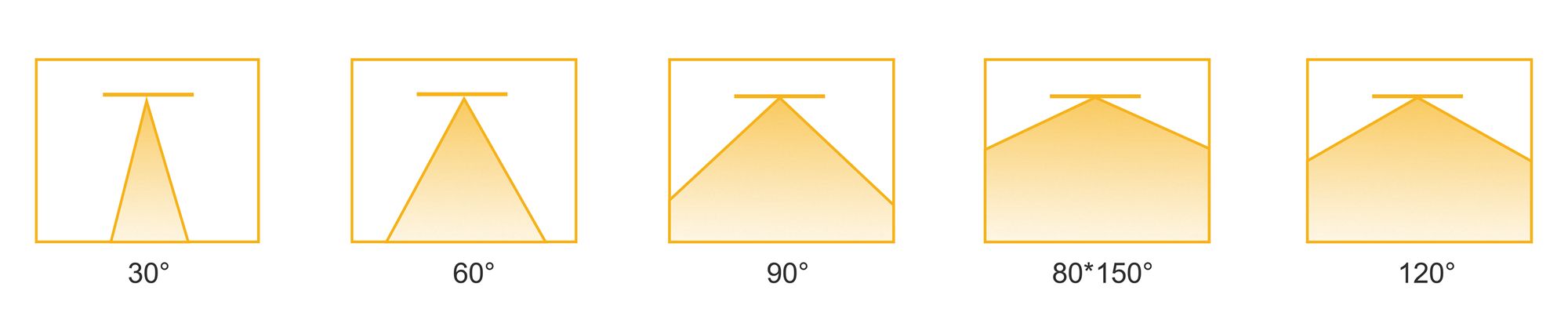

Optical Beam Angles

beam angle of Titan LED Linear High Bay Light industrial light bulb

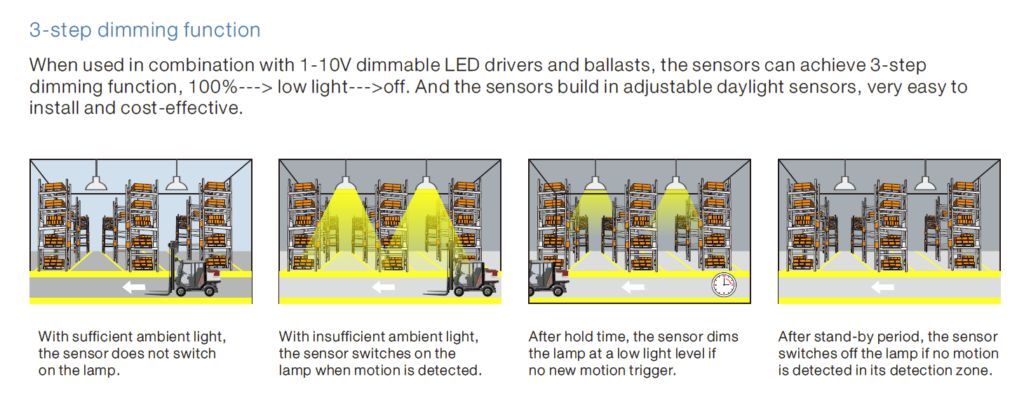

Support intelligent control, timing, motion detection & daylight detection

Led Linear High Bays Led High Bay Lighting Linear Led Bay Light Fixtures

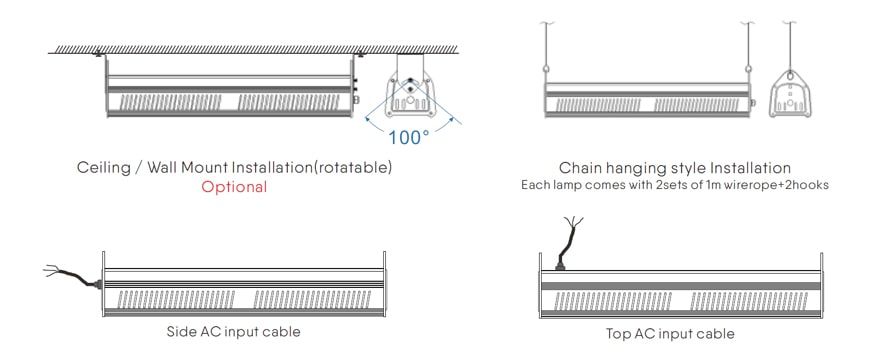

Installation Method

installation of warehouse LED Linear High Bay Light

1.Ceiling/ Wall Mount Installation(rotatable);

2.Chain hanging style Installation;

3.Side AC input cable;

4.Top AC input cable;

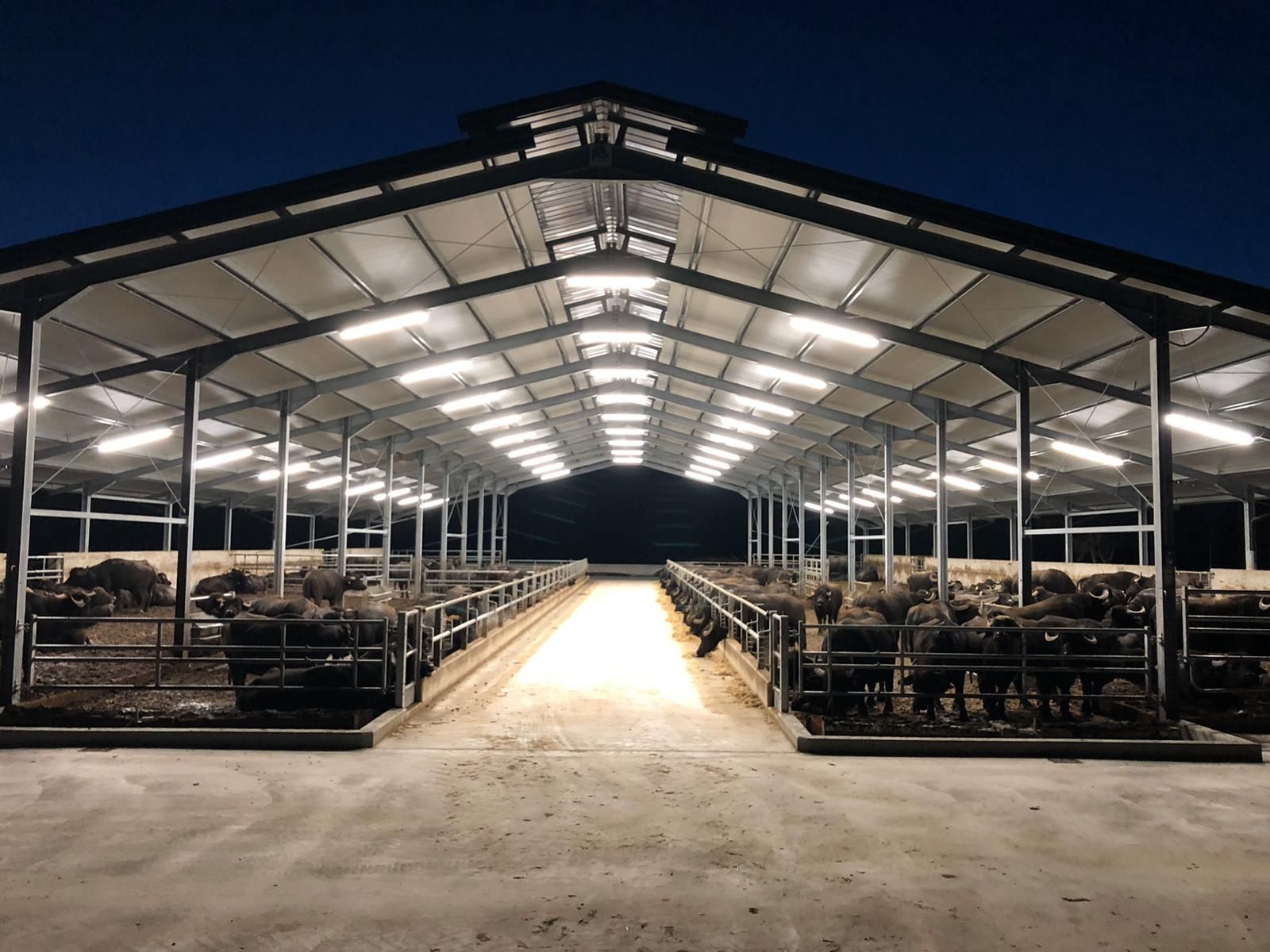

Applications

Widely us in warehouses , workshop, highway toll station, gas station, supermarket, exhibition hall, gymnasium , and other industrial and commercial lighting purposes.

♦ Garden and Landscape Lightin

♦ Tree Uplighting

♦ Statue and Monument Lighting

♦ Architectural Wall Washing Facade Lighting

♦ Flagpole Lighting

♦ Large Sign Illumination

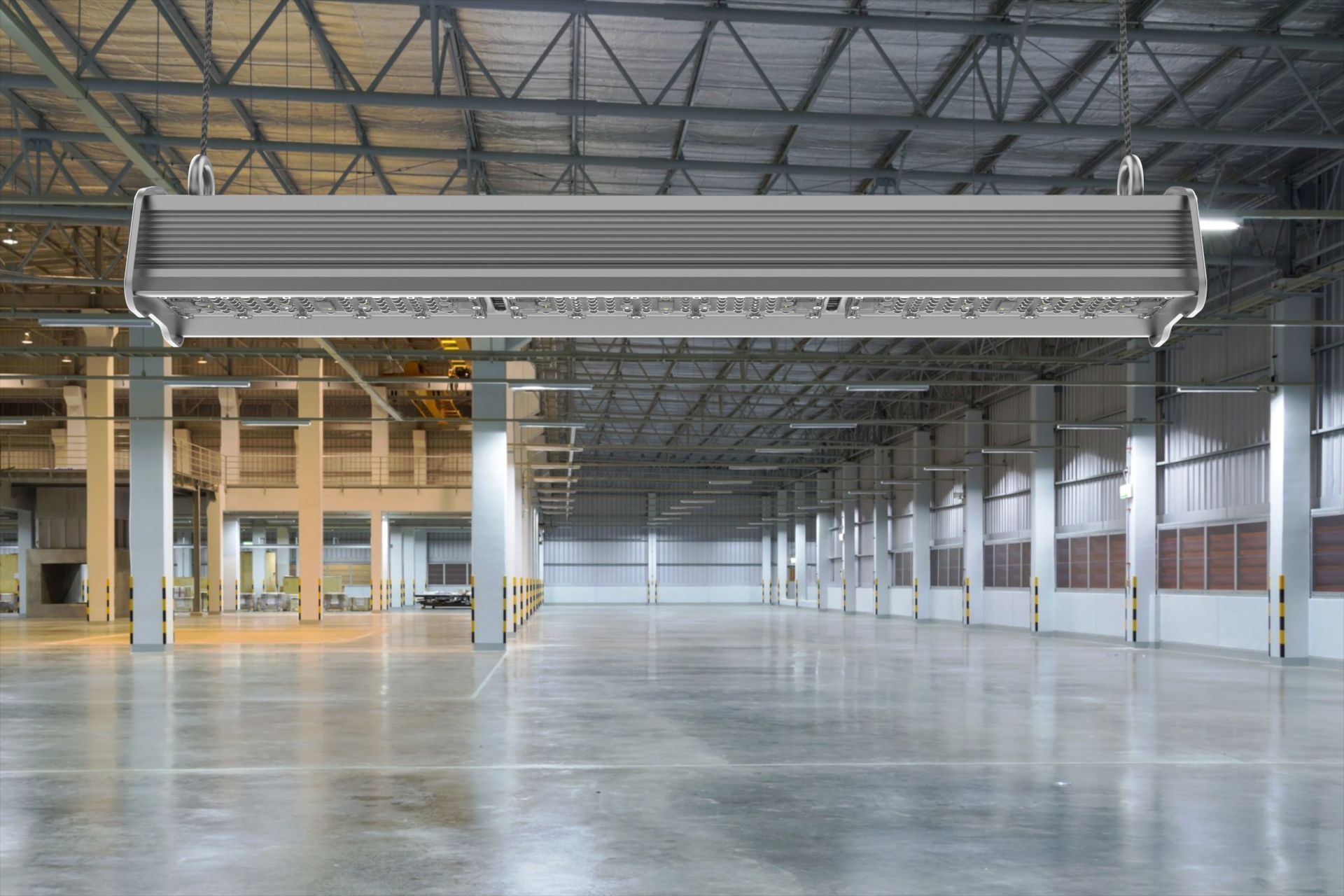

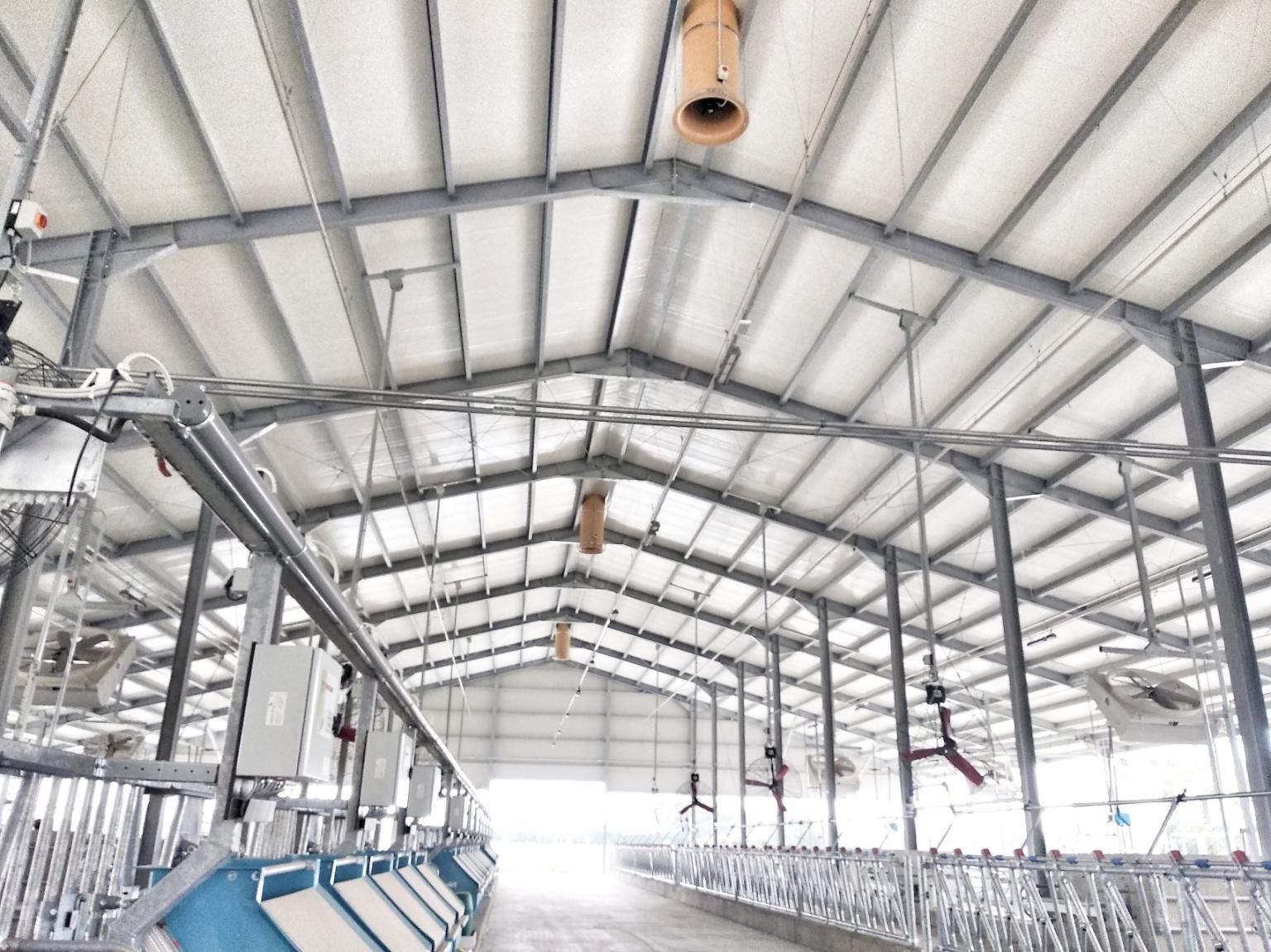

warehouse lighting LED Linear High Bay Light

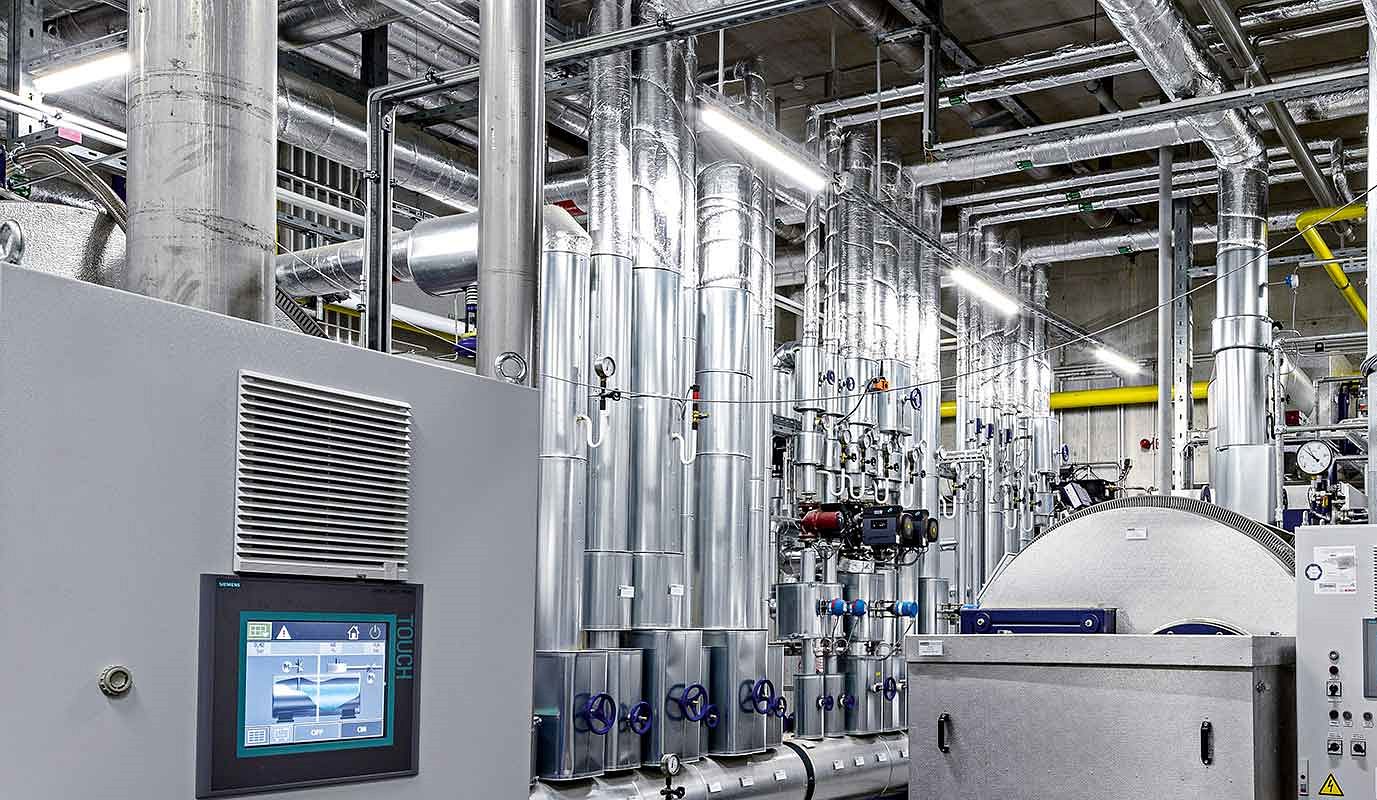

industrial LED bay light linear bay warehouse light

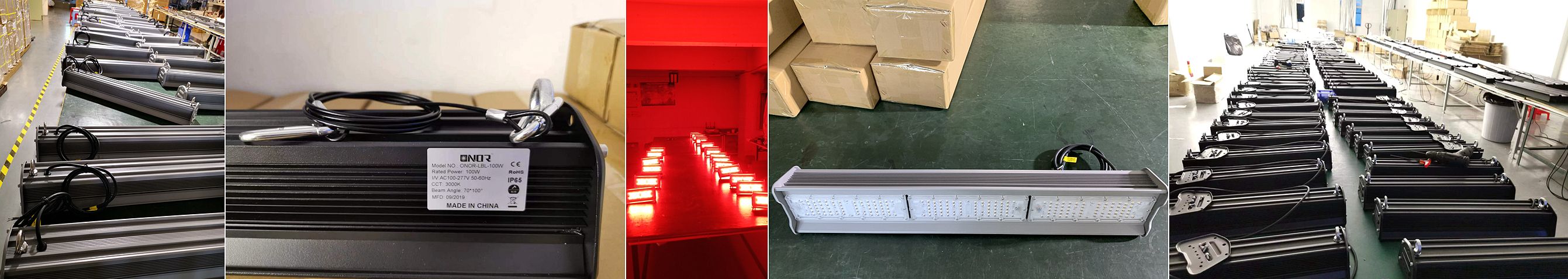

Production

Packaging & Shipping

packaging-of-beam-angle-of-Titan-LED-Linear-High-Bay-Light-industrial-light-bulb

Previous: Apolo UFO LED High Bay Light

Next: lightwing Mobile Tower LED Floodlight

Model NO.	ONOR-LBL-50W	ONOR-LBL-100W	ONOR-LBL-150W	ONOR-LBL-200W
Rated Power	50W	100W	150W	200W
LED Type	Lumileds 5050
Color Temperature	2200K-6500K
Working Temperature	- 20℃ to 45℃
Input Voltage	90-305VAC
Current	1.0A	1.5A	2.0A	2.5A
Beam Angle	30° /60°/90°/120°/80150°/3070°/70*110°
Materials	Aluminum 6063 Body + PC Lens
Certificates	CE RoHS
Ingress Protection Grade	IP65
Dimension	L146W108H268mm	L146W108H523mm	L146W108H777mm	L146W108H1032mm
Dimming Model	0-10V, Zigbee, Dali
